MS PTFE

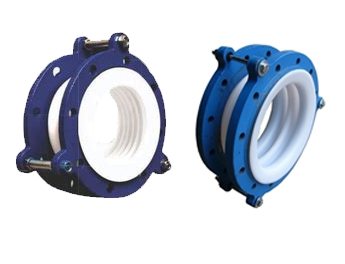

MS PTFE High Pressure Bellow

Specification:
Body:

PTFE / CFT
Flange:

Carbon Steel / SS304 / SS316
Design Pressure:

10 Kg/Cm2
Operating Pressure:

5-6 Kg/Cm2
Operating Temperature:

100°C-130°C
Vacuum:

Full
Convoulation:

3

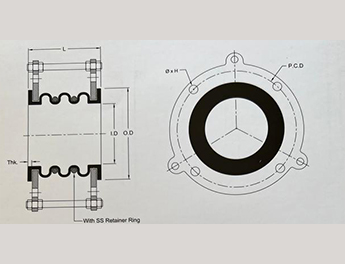

Dimension Detail

Size(NB)	O.D	I.D	L	THK
25	50	25	100	6
40	70	40	100	6
50	90	50	100	6
80	125	75	100	7
100	150	100	100	7
150	215	150	150	8
200	270	200	150	8
250	320	250	150	8
300	381	300	150	9
400	470	400	150	9
450	533	450	150	9
600	692	600	150	9
