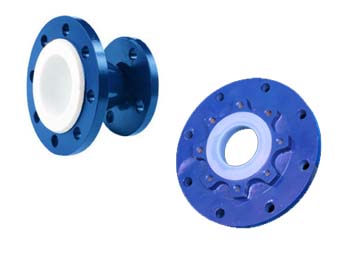

MS PTFE Lined Reducer & Reducing Flange

  • Specification:

  • Body:
    Ductile Iron GGG40.3 / ASTM A395 Cast Steel ASTM A216 Gr. WCB / ASTM A234 Gr. WPB
  • Flange:
    ANSI B16.5 / B16.42
  • Optional drilling standard on request:
    DIN 2632 / 2633 BS 10 Table D.E.F
  • Face To Face:
    ANSI B16.5 #150
  • Lining:
    FEP / PFA / HDPE / PP / PVDF
  • Lining Thickness:
    3mm to 6mm
  • Inspection & Testing:
    ASTM F1545-97
  • Hydraulic Test:
    25 Kg/Cm2
  • Spark Test:
    15 Kv

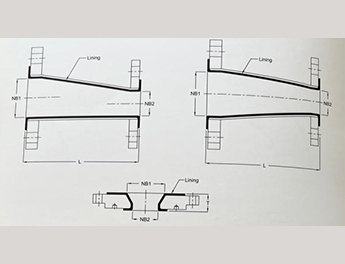

Dimension Detail

NB1 NB2 L T
25 20 114 35
40 25 114 35
50 25 127 35
50 40 127 35
80 25 152 35
80 40 152 45
80 50 152 45
100 25 178 45
100 40 178 45
100 50 178 45
100 80 178 45
150 25 229 54
150 40 229 54
150 50 229 54
150 80 229 54
150 100 229 54
200 80 279 54
200 100 279 54
200 150 279 54
250 100 305 54
250 150 305 54
250 200 305 54
300 150 356 54
300 200 356 54
350 300 406 60
