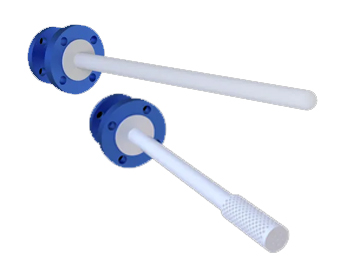

MS PTFE Lined Stright Dip Pipe & Dip Pipe Spager

Specification:
Body:

Pipe Seamless CS / SS ASTM A106
Flange:

IS 2062 / ASTM A105 Gr. B
Drilling Standard:

ANSI B16.5 #150
Lining:

PTFE (Inside & Outside)
Additional Specification:

Dip Pipe Sparger provided as per requirement
Sparger Length:

300mm
Spark Test Internal:

10 Kv
Spark Test External:

5 Kv

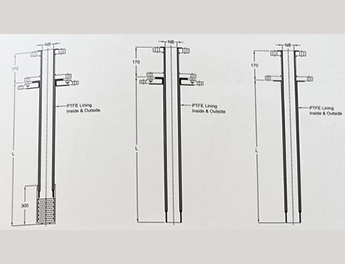

Dimension Detail

Capacity(Liters)	Dip Pipe Size(NB)	Nozzle Dia(MM)	Length L(MM)
63	25	80	300
100	25	80	400
160	25	80	650
250	25	80	800
500	40	100	920
360	40	100	1070
1000	50	100	1200
1600	50	100	1250
2000	50	100	1450
2500	50	100	1500
3000	50	100	1650
4000	50	150	1800
5000	50	150	2200
6300	50	150	2300
8000	80	150	2400
10000	80	200	2500
16000	80	200	2600
20000	80	200	2800
