MS PTFE

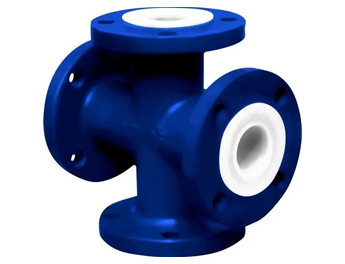

MS PTFE Lined Equal Cross & UN Equal Cross
-
Specification:
-
Body:Cast Steel ASTM A216 Gr. WCB, Steel Fabrication ASTM A106 Gr. B Sch. 40 with Flange as per ASTM A105 / IS 2062, Ductile Iron GGG40.3 / ASTM A395
-
Flange:ANSI B16.5 / B16.42
-
Optional drilling standard on request:DIN 2632 / 2633 BS 10 Table D.E.F
-
Face To Face:ANSI B16.5 #150
-
Lining:FEP / PFA / HDPE / PP / PVDF
-
Lining Thickness:3mm to 8mm
-
Inspection & Testing:ASTM F1545-97
-
Hydraulic Test:25 Kg/Cm2
-
Spark Test:15 Kv

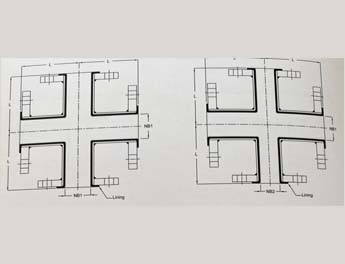

Dimension Detail
| NB | Inch | NB2 | L |
|---|---|---|---|
| 25 | 1" | 25 | 89 |
| 40 | 1 1\2" | 40 | 102 |
| 50 | 2" | 50 | 114 |
| 50 | 2" | 40 | 114 |
| 50 | 2" | 25 | 114 |
| 80 | 3" | 80 | 140 |
| 80 | 3" | 50 | 140 |
| 80 | 3" | 40 | 140 |
| 100 | 4" | 100 | 165 |
| 100 | 4" | 80 | 165 |
| 100 | 4" | 50 | 165 |
| 100 | 4" | 40 | 165 |
| 100 | 4" | 25 | 165 |
| 150 | 6" | 150 | 203 |
| 150 | 6" | 100 | 203 |
| 150 | 6" | 50 | 203 |
| 200 | 8" | 200 | 229 |
| 250 | 10" | 250 | 279 |
| 300 | 12" | 300 | 305 |
