MS PTFE

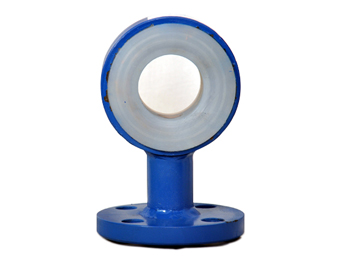

MS PTFE Lined Instruments Tee
-
Specification:
-
Body:Cast Steel ASTM A216 Gr. WCB, Steel Fabrication ASTM A106 Gr. B Sch. 40, Ductile Iron GGG40.3 / ASTM A395.
-
Flange:ANSI B16.5 / B16.42
-
Optional drilling standard on request:DIN 2632 / 2633 BS 10 Table D.E.F
-
Face To Face:ANSI B16.5 #150
-
Lining:FEP / PFA / HDPE / PP / PVDF
-
Lining Thickness:3mm to 6mm
-
Inspection & Testing:ASTM F1545-97
-
Hydraulic Test:25 Kg/Cm2
-
Spark Test:15 Kv

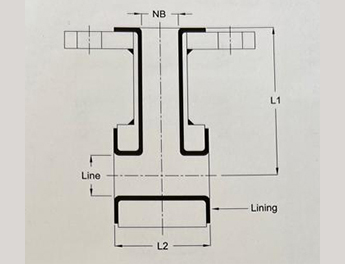

Dimension Detail
| Line MM | Line Inch | NB MM | NB Inch | L1 MM | L2 MM |
|---|---|---|---|---|---|
| 25 | 1" | 25 | 1” | 89 | 51 |
| 40 | 1 1\2" | 25 | 1” | 102 | 51 |
| 40 | 1 1/2" | 40 | 1 ½” | 102 | 76 |
| 50 | 2" | 25 | 1” | 114 | 51 |
| 50 | 2" | 40 | 1 ½” | 114 | 76 |
| 80 | 3" | 25 | 1” | 140 | 51 |
| 80 | 3" | 40 | 1 ½” | 140 | 76 |
| 100 | 4" | 25 | 1” | 165 | 51 |
| 100 | 4" | 40 | 1 ½” | 165 | 76 |
| 150 | 6" | 25 | 1” | 203 | 51 |
| 150 | 6" | 40 | 1 ½” | 203 | 76 |
| 200 | 8" | 25 | 1” | 229 | 51 |
| 200 | 8" | 40 | 1 ½” | 229 | 76 |
| 250 | 10" | 25 | 1” | 279 | 51 |
| 250 | 10" | 40 | 1 ½” | 279 | 76 |
| 300 | 12" | 25 | 1” | 305 | 51 |
| 300 | 12" | 40 | 1 ½” | 305 | 76 |
