MS PTFE

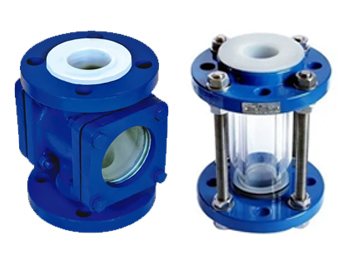

MS PTFE Lined Double Window Sight glass & Full View Sight Glass

Specification:
Body:

Carbon Steel ASTM A216 Gr. WCB.
Flange:

ANSI B16.5 150# / B16.42
Face To Face:

ANSI B16.5 #150 / DIN 3202
Lining:

FEP / PFA / HDPE / PP / PVDF
Lining Thickness:

3mm to 5mm
Glass:

Toughen
Frame:

Carbon Steel / SS304 / SS316
Flange Dimention:

ANSI CLASS 150#
Seals:

PTFE
Glass:

Borosilicate
Spark Test:

15 Kv

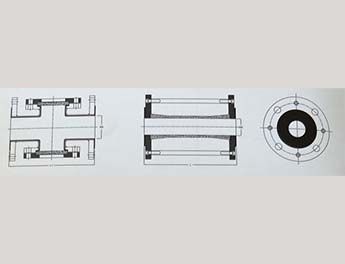

Dimension for Double Window

Size NB	L MM
25	160
40	200
50	230
80	310
100	350
150	480

Dimension Details

Size NB	L MM
25	180
40	180
50	180
80	180
100	180
