MS PTFE

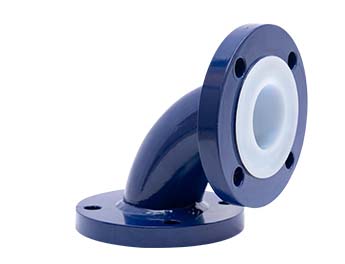

MS PTFE Lined Bend
-
Specification:
-
Body:Steel Fabrication ASTM A234 Gr. WPB with Flange as per ASTM A105 / IS 2062, Ductile Iron GGG40.3 / ASTM A395, Cast Steel ASTM A216 Gr. WCB.
-
Flange:ANSI B16.5 / B16.42
-
Optional:Rotating Flanges on Request
-
Face To Face:ANSI B16.5 #150
-
Lining:PTFE / FEP / PFA / HDPE / PP / PVDF
-
Lining Thickness:3mm to 7mm
-
Inspection & Testing:ASTM F1545-97
-
Hydraulic Test:25 Kg/Cm2
-
Spark Test:15 Kv

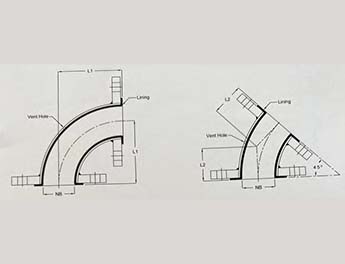

Dimension Detail
| Size NB | Size Inch | L1 | L2 |
|---|---|---|---|
| 25 | 1" | 89 | 45 |
| 40 | 1 1\2" | 102 | 57 |
| 50 | 2" | 114 | 64 |
| 80 | 3" | 140 | 76 |
| 100 | 4" | 165 | 102 |
| 150 | 6" | 204 | 127 |
| 200 | 8" | 228 | 140 |
| 250 | 10" | 279 | 165 |
| 300 | 12" | 305 | 190 |
